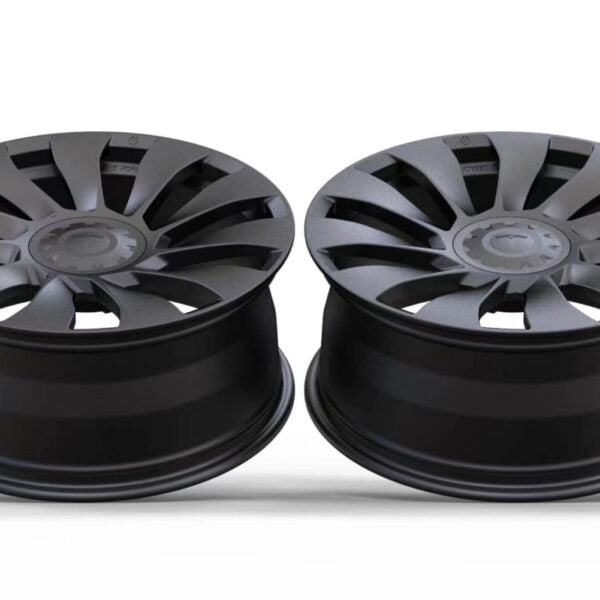

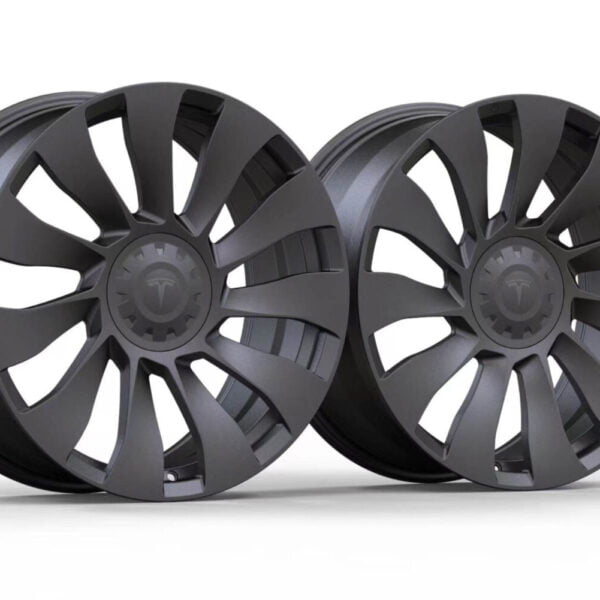

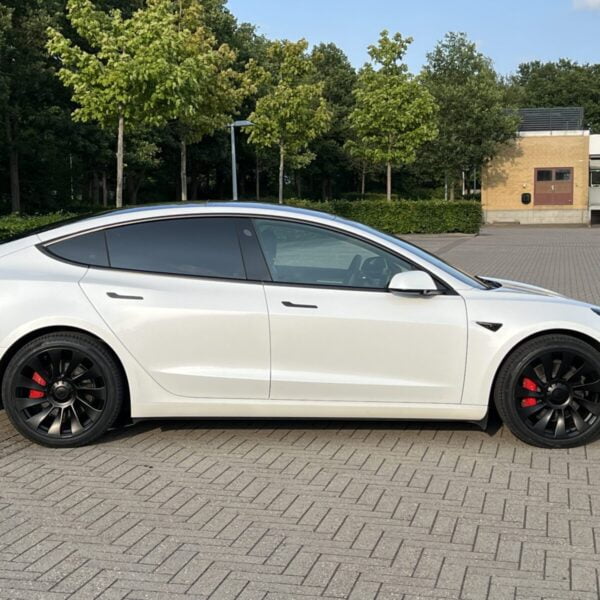

Concept 01 Forged (All Model 3)

1. EV-FORGED alloy wheels have a right and left side (directional) so all ‘turbine’ blades point forward (aerodynamic advantage) original Tesla uberturbine alloy wheels rotate in the wrong direction due to production savings.

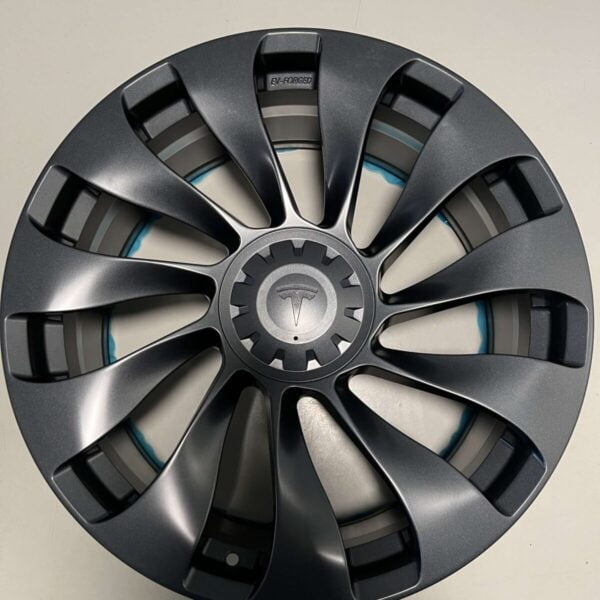

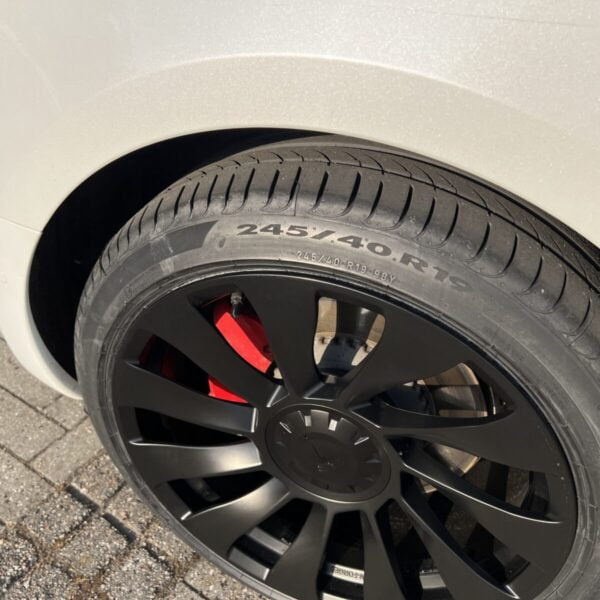

2. Improved design with thinner blades so brakes and rotors are more visible also rim edge is more clear.

3. Smaller ET for a more sporty stance, vehicle stability and concave look.

4. Our wheels are about 0,5 narrower in order to get better rim protection and greater comfort from your tires.

5. Most crucial feature of our wheels is the lightweight design that gives you more range, better performance and shorter braking distance.

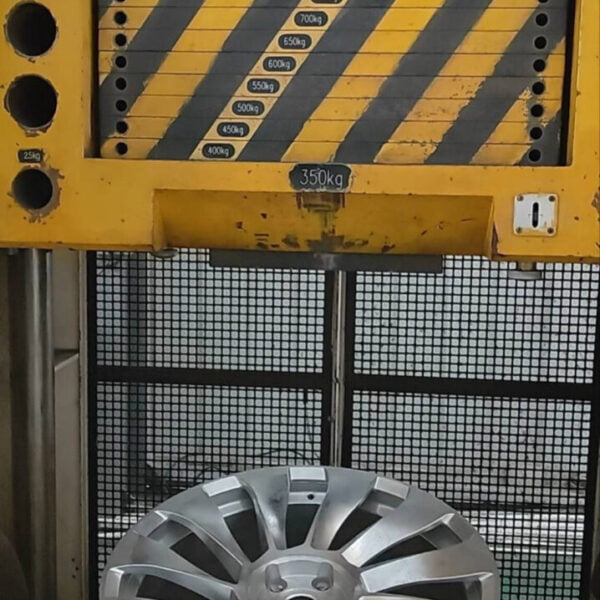

6. Our alloy wheels meet all requirements from JVL/VIA and TÜV, where the internal max load test is performed at 900 kg.

7. All specifications and colors can be altered.

Specifications (Fits All Tesla Model 3 Variants)

Size: Front: 21×9 Back 21×9,5
Offset: Front: 31Back: 29
Bolt Pattern (PCD): 5×114.3
Center Bore: 64.1
Construction: Forged
Weight: Front 12,3 Back 12,7 kg
Load Rating: 800kg
Tire size : Front: 21/30/255 Back 21/30/265

Size: Front: 20×8,5 Back 20×9.0
Offset: Front: 28 Back: 25
Bolt Pattern (PCD): 5×114.3
Center Bore: 64.1
Construction: Forged
Weight: Front 11,3 Back 11,7 kg
Load Rating: 800kg
Tire size : Front: 20/35/235 Back 20/35/255

Size: 20×8,5
Offset: Front: 28 Back: 22
Bolt Pattern (PCD): 5×114.3
Center Bore: 64.1
Construction: Forged
Weight: 11,3 kg
Load Rating: 800kg
Tire size : 20/35/235

Size: 19×8,5
Offset: Front: 28 Back: 22
Bolt Pattern (PCD): 5×114.3
Center Bore: 64.1
Construction: Forged
Weight: 10,9 kg
Load Rating: 800kg
Tire size : 19/40/235

Size: 18×8,5
Offset: Front: 28Back: 22
Bolt Pattern (PCD): 5×114.3
Center Bore: 64.1
Construction: Forged
Weight: 9,4 kg
Load Rating: 800kg
Tire size : 18/45/235

Set of 4 wheels, sensors and tires excluded. Tesla original caps fit this design and are included with this set.
